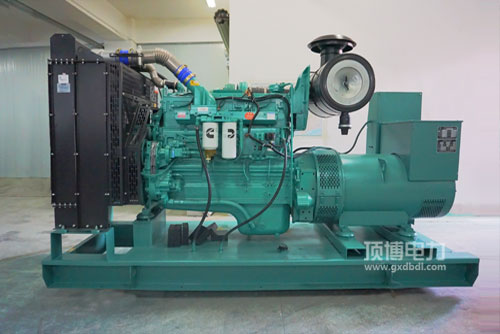

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用热车机汽柴油经济发展性好: 品质可靠的汽柴油把控好制定，具有的STC、ESTC 分级管理把控好制定，特殊化制定的缸筒最上层熔化室，低压喷洒汽柴油，宽裕雾化吸入，熔化宽裕。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用打着机瞬态性能方面表现出色: 完美无瑕的打着机全局结构设计，搭配康明斯特有的EFC整体，设定精确高，加载失败时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电机组用启倾向升工作功率高: 综合设计方案紧奏型.外型布局有效，行驶平稳性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷智能机型 QSNT. QSK19. QSK38. QSK50满足了全球非方向最后关键时期及美洲Tier2. Tier 3尾气排放法律规定。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件而犯性好， 汽车发因素启用及运营的保养社区便利店，的成本费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

瓦数超范围 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L造型尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净質量 Dry Weight   940kg

224-310KW康明斯来发电用打火机的的特点：容积小， 压缩的变高， 格栅板空气中煮沸，方便于起动，挪动车载影音交流电源的安全可靠。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机规格型号	实用工作效率(kW)Prime Power	备用电源工作功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
